PESCI MARINE 305M

PESCI MARINE 305M

MARINE KNUCKLE BOOM CRANE

  • TOP RANGE model, load category 30 T/M
  • Reliability, speed, and precision
  • Strong linkage system on each arm to get maximum performance
  • Rotation with slewing bearing ring
  • Optimized for exceptional performance

305 is innovative in engineering for top precision, efficiency, speed, and performance in the marine sector

PESCI MARINE 305 is a reliable knuckle boom crane in a variety of sectors and applications

  • Superior Hydraulic Marine Technology
  • Stronger lifting range for flexibility, operational, and reliability
  • High Degree of user Friendliness
  • Superior Quality Marine Components
  • Advanced safety and security systems

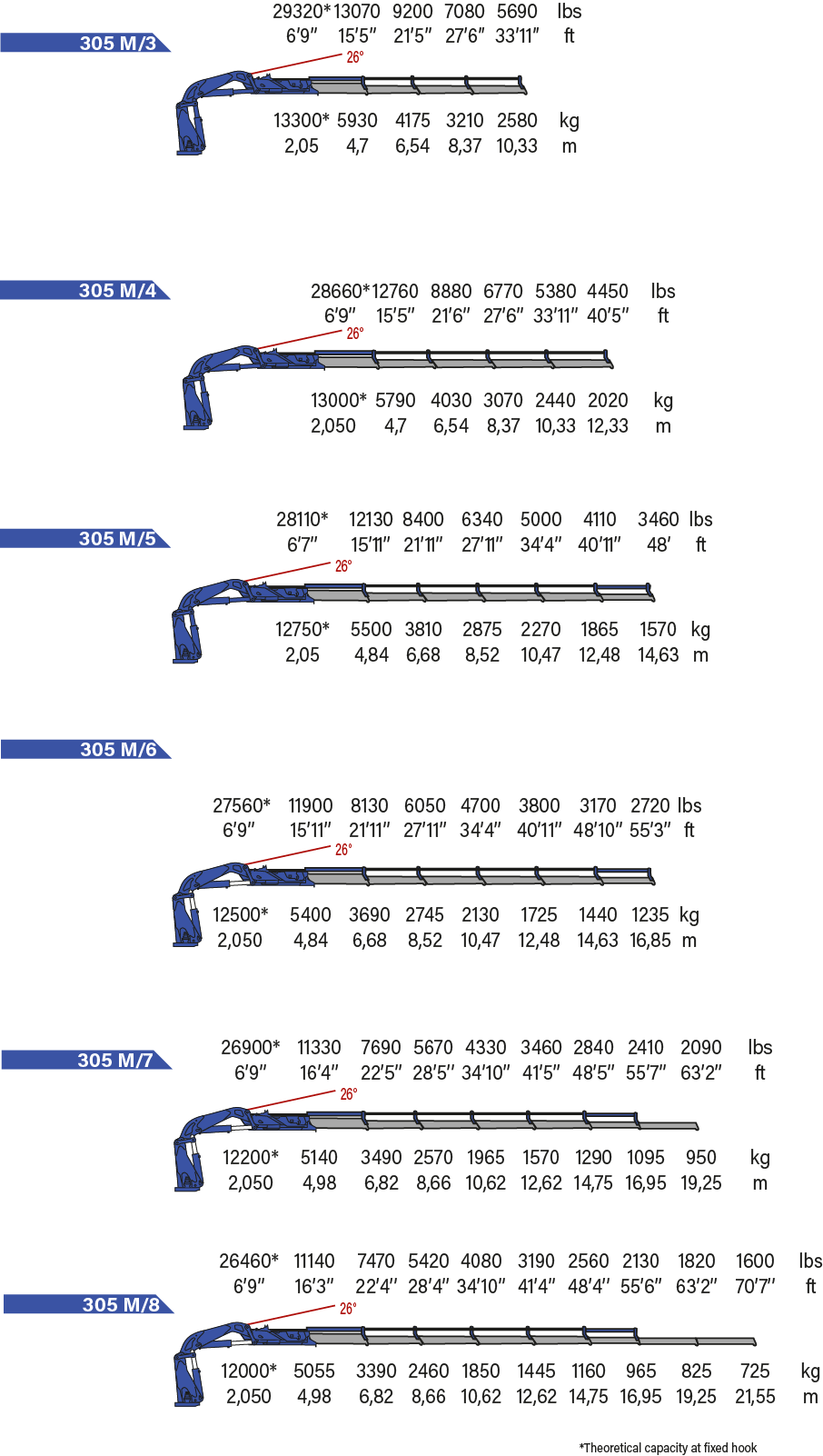

Optimized reach for maximum stability and power.



Constant Control Link System. The cranes equipped with connecting rods on the articulations, with a constant lifting moment over the entire working arc, allow to 100% optimize the marine crane’s capacity in positions close to the maximum vertical.
High Power Velocity Hydraulic. Fully automatic hydraulic system for adjusting the crane lifting speed according to the maximum working pressure. With this system, the load capacity of the machine is optimized by reducing the dynamic structural effects.
Negative Boom System. The linkage on the articulation of the secondary boom permits the introduction of loads within restricted spaces. It enables the recovery of the deflection of the extension boom group due to the weight and the load raised on the extensions.
Rotation Endless System 1.0. A rotating bearing and one gearbox system, the electric wires are linked between base-column with a swivel electrical-hydraulic joint. Allows operator to gain maximum power also at the slowest operational speed and having the highest precision.
Radio Remote Control 3.0. Radio remote control with the electro-hydraulic actuator connected directly to the proportional control valve. The remote control allows operating the crane while continually monitoring the areas of operation.
