COPMA 1000

COPMA 1000


  • TOP RANGE – HEAVY RANGE model, over 100 Ton/Mt.
  • Maximum Power Weight Ratio
  • Standard and Optional Features
  • Efficiency and Reliability
  • Excellent Operational Safety
  • Longer Life Value

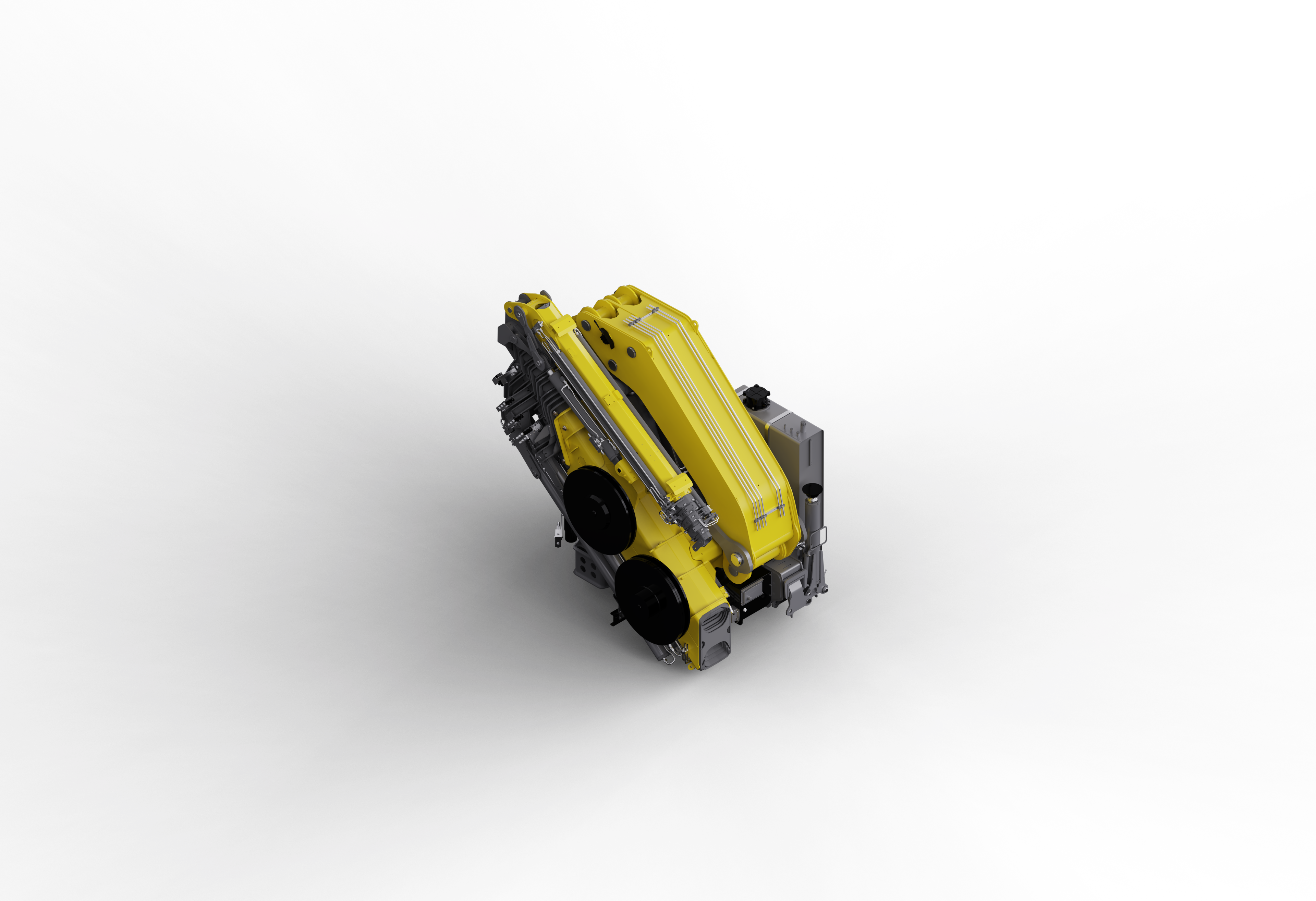

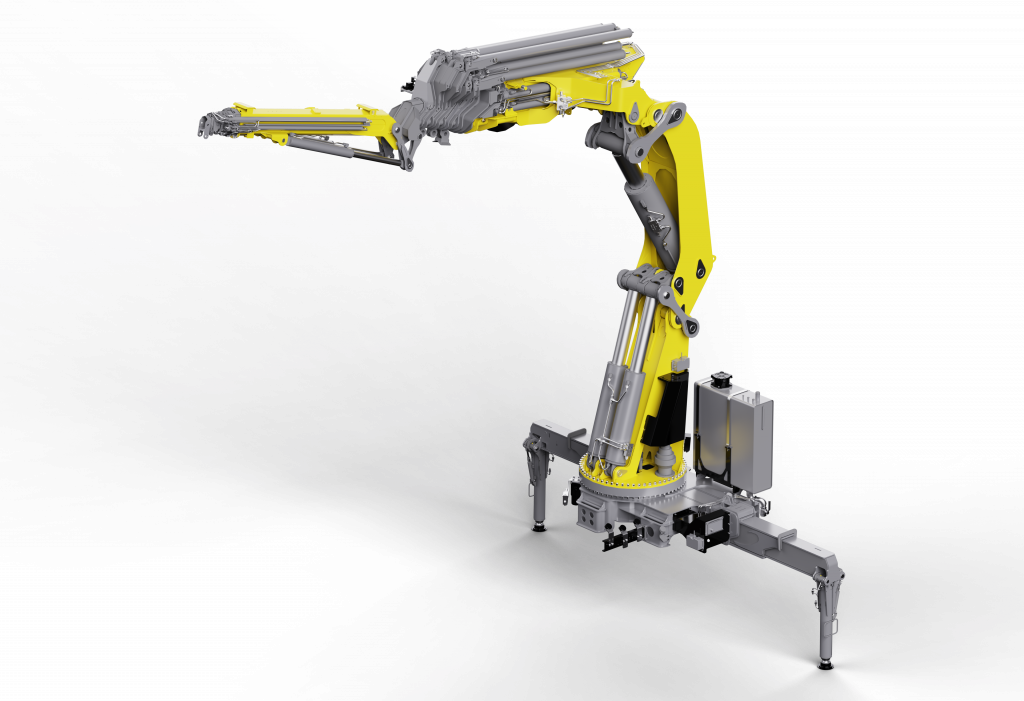

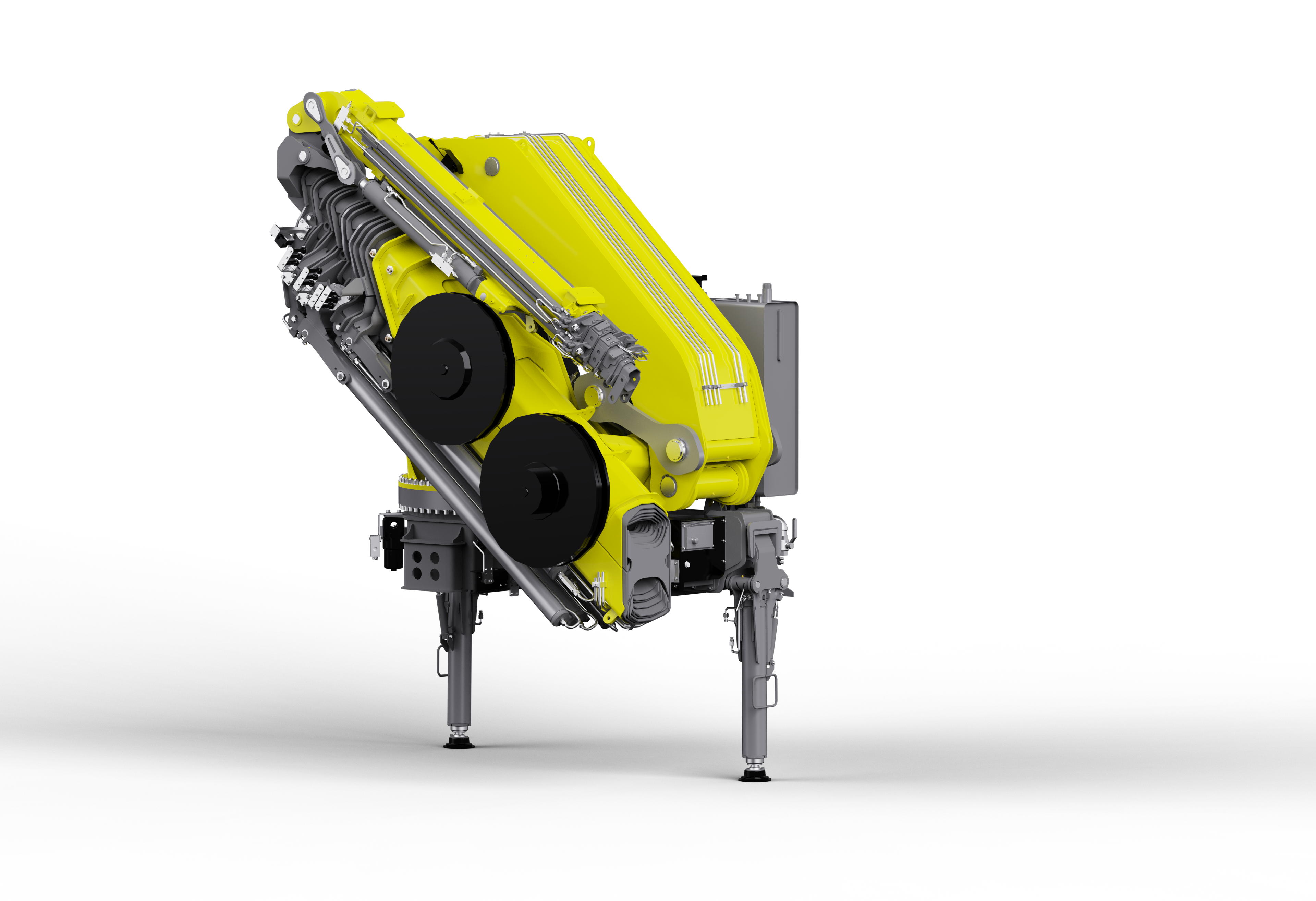

1000 is an extremely performing, reliable knuckle boom crane with an extraordinary lift capacity for a wide range of sectors.

COPMA 1000 is engineered with top-tier hydraulic systems and robust structural steel, ensuring it delivers the utmost lifting capacity.

Maximize Stability and Power with Optimized Reach.

COPMA® Remote Connectivity 4.0 to the crane. Two-way communication by GPRS for real-time diagnosis and remote real-time parameter setting and/or adjustment.
A valve electronically manages the flow of oil to the distributor by increasing the load capacity of the crane and intervening on the lifting speed. Allowing the reduction of dynamic effects while optimizing performance.
Cabin Anti Collision Device Cabin anti-collision device (available only if combined with ELS). This system prevents the boom from performing any movement that might crash the truck cabin. It’s a setting in the CMS 2.0/CMS 3.0 software that can be adjusted only after the crane is installed on the truck.
Constant Control Link System. The cranes equipped with connecting rods on the articulations, with a constant lifting moment over the entire working arc, allow to 100% optimize the crane’s capacity in positions close to the maximum vertical.
Crane stability control system 3.0. TES2-TES3, with safety and overload system, controls medium high-range crane and HPVE lifting speed management. Active control on 4-8 working areas according to the model and vehicle stability requirements.
els copma
Electronic Limit Switch Electronic limit switch on articulation rams. This device prevents the end run and therefore avoids the pressure peaks that stall the machine. The crane works in a smoother and safer way.
Electronic Radio Display. A display on the remote control allows the operator to maintain the total control of all the crane functions in real time by managing the work mode, the stability control, and oversee any maintenance and diagnostic messages.
Hydraulic Lifting Stabilizers 2.0. The cylinder of the stabilizer is lifted with an auxiliary jack, allowing the vertical movement within the bushes or rotating around a pin. It saves operative time in increasing the security of the setup.
High Speed Extension. Hydraulic system for reducing load losses and bottlenecks for the correct output sequence of the extensions by increasing the speed of 30%-60% thanks to the regenerative valve. Greater continuous performance thanks to lower fluid temperature.
High Tensile Strenght Steel. The entire high-strength steel structure thanks to an advanced FEM engineering process, develops an extraordinarily light and performing crane structure. In the perfect balance between maximum performance and operational safety.
Negative Boom System. The linkage on the articulation of the secondary boom permits the introduction of loads within restricted spaces. It enables the recovery of the deflection of the extension boom group due to the weight and the load raised on the extensions.
Negative Control System. Slope sensors mounted on the articulated booms of the crane, combined with the electronic control, control the maximum vertical angle of the arms and the JIB preventing incorrect or dangerous movements by the operator.
Rotation Endless System 2.0. A rotating bearing and double gearbox system, with a clearance adjusting system with an eccentric shaft. It provides the perfect transmission of the rotation with the bearing, allowing better crane optimization.
Radio Remote Control 3.0. Radio remote control with the electro-hydraulic actuator connected directly to the proportional control valve. The remote control allows operating the crane while continually monitoring the areas of operation.
Transport Alert Device. Sensors on the basement controls the correct closing of the beams, and a column switch sensor indicates the crane folded position, no more than 4 mt in height. The operator is warned with light and sound signals in the truck cabin.
Truck Electronic Stability 4.0. Active stability control for performance optimization according to the type of stabilization to guarantee maximum safety in all working conditions. Mandatory in the CE market, it helps a better vehicle-crane configuration.
Winch Linear Control. The winch linear electronic control allows pulling the rope according to the working angle of the crane and the JIB. It optimizes load control and makes every movement easier and safer.
