FS 74 Z LOADER CRANE

  • FS Z loader crane model, over 7 Ton/Mt.
  • Longer Life Value
  • Designed to be compact for close-range operations
  • Double Rack Slewing
BUILT TOUGH TO PERFORM IN EVERY ENVIRONMENT
  • High-quality hydraulic components
  • Easy to use electronic controls
  • Very resistant arm system
  • Great visibility from the control position



Engineered for the highest levels of performance and reliability without any compromise.

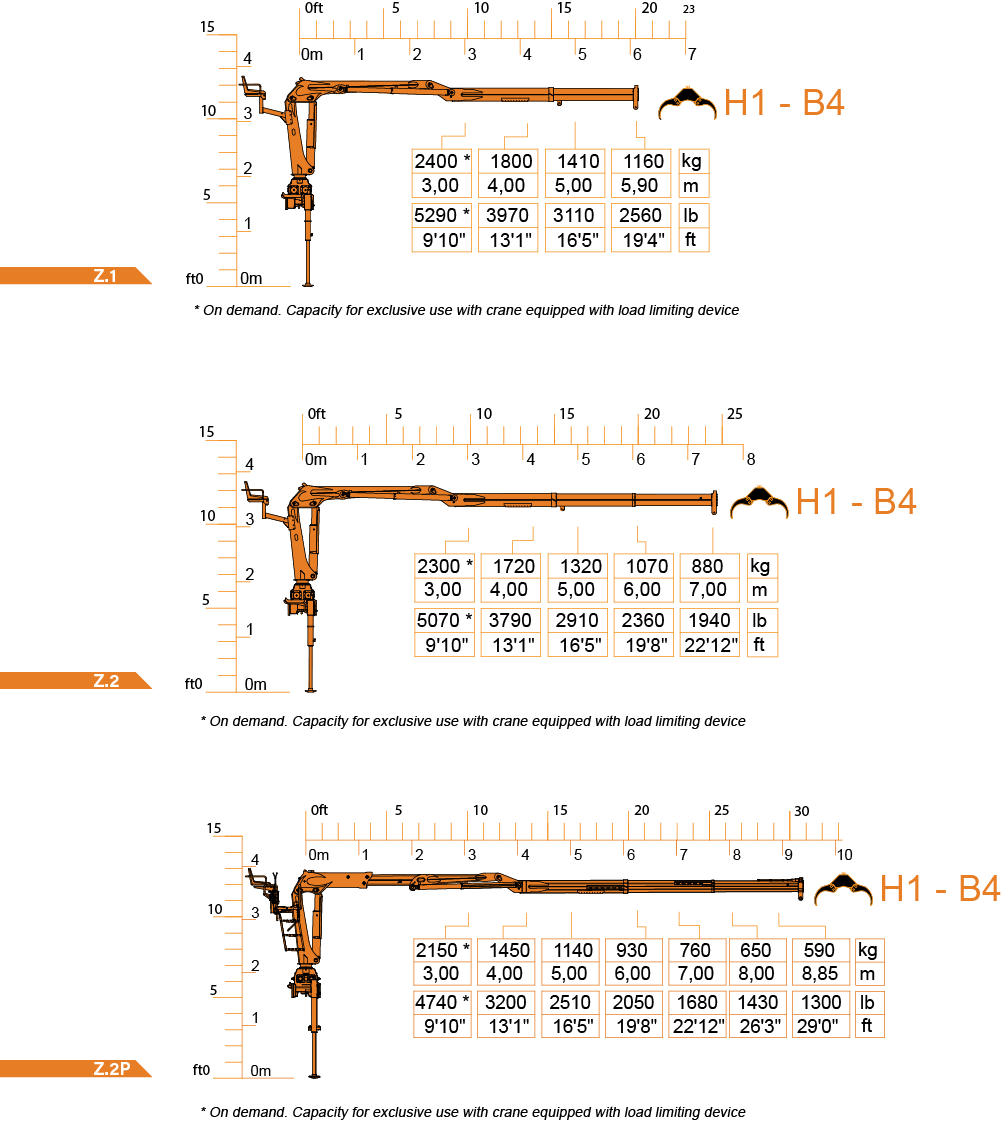

Optimized reach for maximum stability and power.



Crane Monitoring system 1.0. Crane stability control system TES1-TES2, with safety control and overload control for medium-small cranes. Controls the crane in 4 work areas, and each zone can have custom lifting settings depending on the vehicle stability.
Hydraulic Lifting Stabilizers 2.0. The cylinder of the stabilizer is lifted with an auxiliary jack, allowing the vertical movement within the bushes or rotating around a pin. It saves operative time in increasing the security of the setup.
Radio Remote Control 3.0. Radio remote control with the electro-hydraulic actuator connected directly to the proportional control valve. The remote control allows operating the crane while continually monitoring the areas of operation.
Rotation Rack Pinion. The rotation system with rack and pinion is the best optimal solution for the most performative lifting capacity. It reduces the weights and the crane dimension for the most compact configuration.
Transport Alert Device. Sensors on the basement controls the correct closing of the beams, and a column switch sensor indicates the crane folded position, no more than 4 mt in height. The operator is warned with light and sound signals in the truck cabin.
Truck Electronic Stability 1.0. Active stability control for performance optimization according to the type of stabilization to guarantee maximum safety in all working conditions. Mandatory in the CE market, it helps a better vehicle-crane configuration.
