SH 8

SH 8

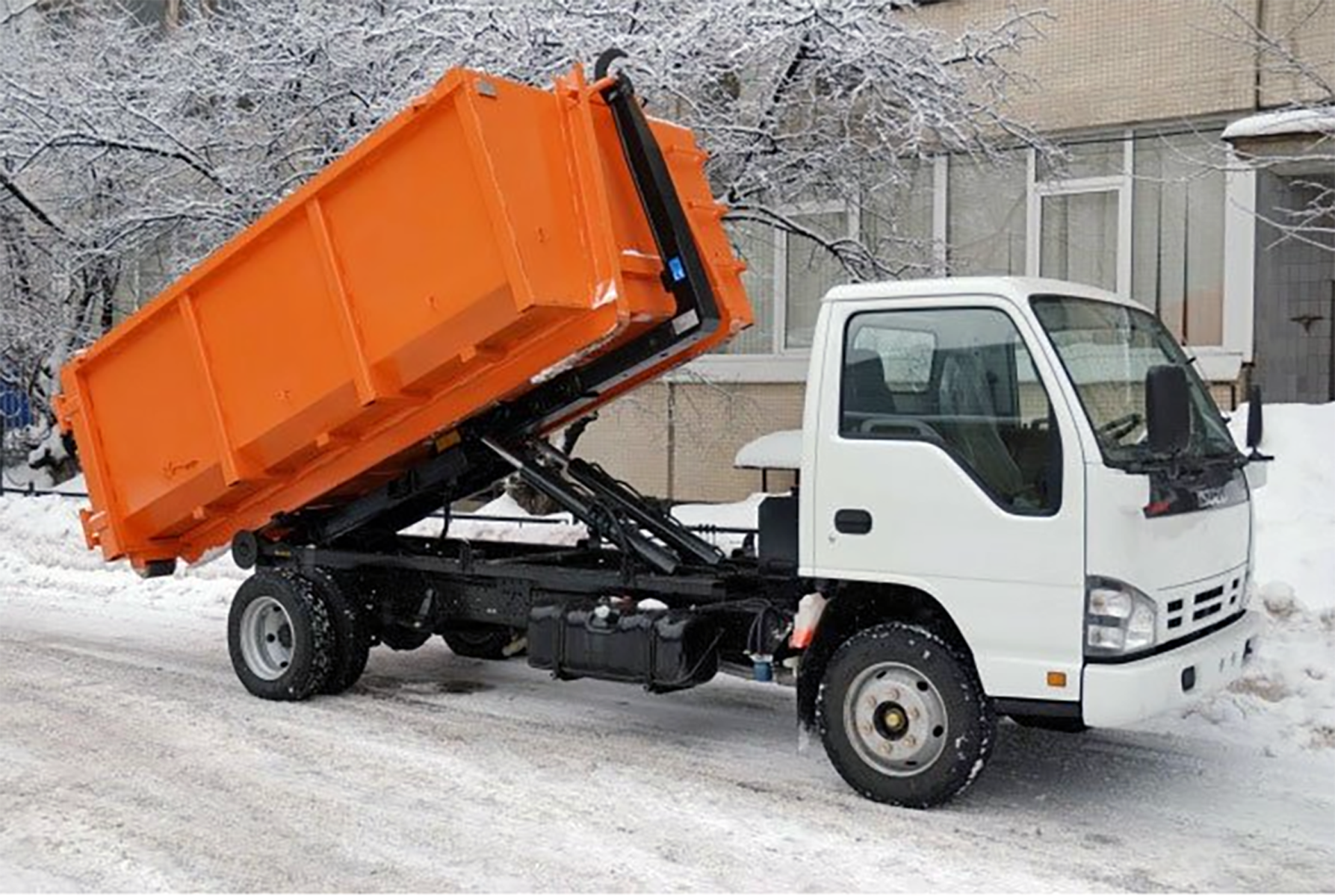

SH 8 HOOK LIFT

  • CPS hook lift model, over 8 Ton lifting capacity
  • High Resistant Graded Steel
  • Longer Life Value
  • Rust Resistant Paint
  • Outer Hydraulic Locking Device
BUILT TOUGH TO PERFORM IN EVERY ENVIRONMENT
  • High-quality hydraulic components
  • Easy to use electronic controls
  • Very resistant arm system
  • Controls directly from the truck cabin







Manual Version for SR versions
Rear leaf suspension blocking system with two cylinders.
Cabin Electro-pneumatic wire control enables the control of the system directly from the truck cabin
The front locking increases the stability during transportation of high containers, It also allows for the loading and use of special containers with cranes, loaders, or other hydraulic devices
Frontal Oil Tank (OPT)
Flap down system with a single cylinder
Gravity Version (std)
Pneumatic hoses 6 mm to the control valve elements with lights in the cabin.
